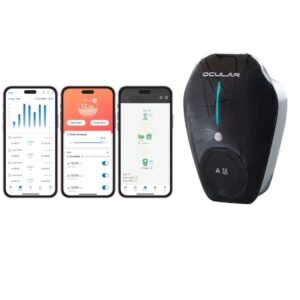

Ocular IQ Home Solar RFID | 22 kW | w/5m Cable

Welcome to the future of charging with the IQ Home Solar, our cutting-edge charging solution is designed to meet the needs of modern electric vehicle owners, offering versatility, efficiency, and convenience at their doorstep.

The system comes with CT clamps to measure your solar production excess, which enables you to charge with green, free electricity from your solar panels, and protects your home from overloading. The IQ Homes has three different charging modes to suit your individual needs and solar production levels. Built to withstand the Australian elements, it comes with IP55 protection, ensuring reliable performance in any weather conditions. The unit’s compact design makes it ideal for residential settings, allowing for easy installation and seamless integration into your home. Equipped with a 5m type 2 cable, the charger offers convenient and hassle-free charging for your EV.

What does each charging mode do? Fast, Solar Assist or Solar Only.

The Ocular IQ Home is designed to offer flexibility through three (3) charging modes: For solar charging our preferred mode is solar assist as it always ensures a baseline load + excess solar.

Fast Mode:

In this mode, the vehicle will be charged at maximum power. This power can come from a renewable energy source or the grid.  If you have set a current limit on the schedule or by the electrician during installation that will determine maximum power.

Solar Assist: (Recommended Solar Mode)

This mode will charge your EV at a minimum of 6 Amps plus any excess solar produced. If solar production is low, power will be drawn from the grid. This is the preferred solar mode, particularly on cloudy days or when you have a smaller solar system. This will ensure a continuous charge plus any excess solar that your home generates.

Solar Only:

This mode charges your EV only when excess solar is produced. Please note a minimum excess of 7 Amps is required to use this mode so that the integrity of your vehicle’s battery is protected. If the solar production drops below 6 Amps the charging will pause and then restart after ~2-3 minutes of excess solar above 7 Amps.

We recommend this mode when you have a clear excess of solar power produced. Use Solar Assist when your production is low or intermittent.

Safe – Power Balancing

The Ocular IQ Home has energy balancing for energy restricted homes especially in the hot Australian summer. The Ocular IQ Home senses energy limitations in your home and adjust your charging speed to avoid overloading your electrical supply.

Utilising CT clamps the Ocular IQ Home senses a home’s available electricity. It can read the incoming feed to the building, take into account the building energy usage and calculate a final amount of power that is then distributed to the charger.

The IQ Home reads the power feed every second and reduces the power output when other home appliances, such as a water heater, air condition systems are turned on. Once the water heater is turned off, the charger will automatically read the available power and increase the power output to the maximum available level. This gives you the maximum charging speed without tripping your homes power.

 Tech Specifications – See Datasheet for more information

• OCPP 1.6J, 2.01 Integration
• Wifi / Ethernet Modbus
• 22 KW, 32Amp, Three Phase Configurable Power
• 5m Tethered Cable
• Wall or pole mounted for convenience.
• Integrated Metering
• Indoor and Outdoor Rated
• 2 Year Warranty
• Compatible with all-electric vehicles and models including Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, Subaru
• Robust, space-saving housing
• Current Transformer (CT) clamps included to measure excess solar output.- Long 20m cable to reach from your charger location to the distribution board.- 100A maximum rated current and 16mm maximum cable size fits most residential installations.- For the 3 Phase charger, 3 clamps are included, and on single phase, only one clamp is included.

 What happens when I have a stationary home battery?

For the most part, any excess solar produced by the system will be absorbed by the battery. The Ocular IQ Home modes work by using a CT Clamps to understand what you are exporting out to the grid. You may find that the home battery is absorbing most of your excess solar generated first and so what’s going out to the grid is minimal. Despite this, it’s fine to still install a charger, but you may find the solar assist mode is the best mode as it draws a small amount from the grid/battery when no excess solar is being produced. If there is excess solar available, it can then utilise the available excess solar that the battery is not taking.

2 Years – Installation must adhere to the provided instructions accompanying the unit.
