Ocular DC Charging
SKU: OC-30PTBDC

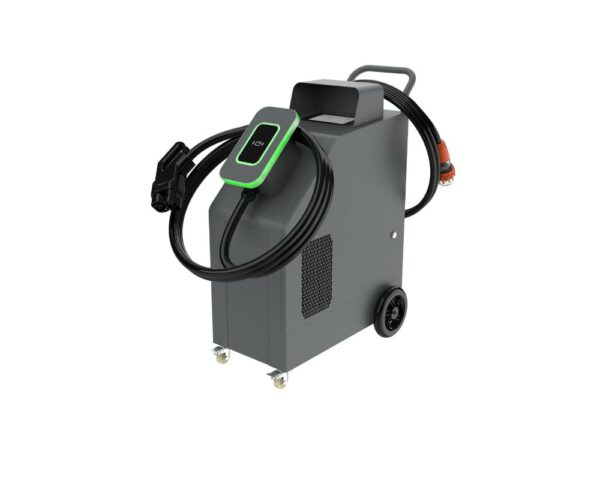

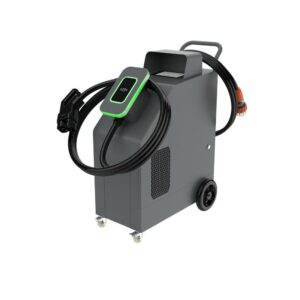

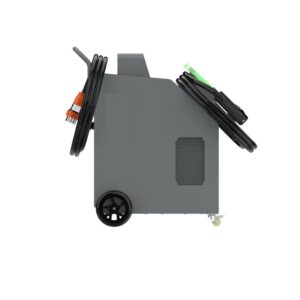

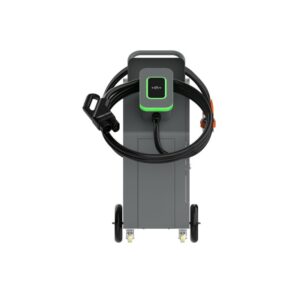

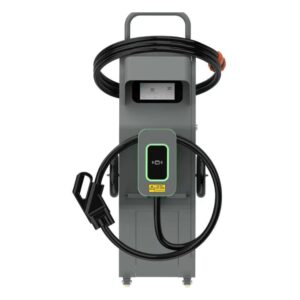

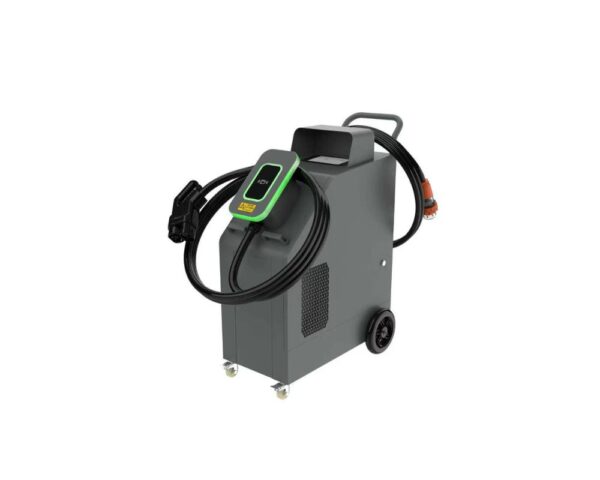

30kW Ocular Roam Portable DC Charging Station
Login to see pricesThe Ocular Portable DC Charger is a transportable DC fast charger suitable for charging all types of electric vehicles, cars, trucks & buses.
QUICK OVERVIEW
The Ocular Portable DC Charger is a transportable DC fast charger suitable for charging all types of electric vehicles, cars, trucks & buses. You can easily charge your EVs at any location with a high powered 63Amp 3-phase outlet available. Our world leading portable has powered fleets across Australia as the best in class portable DC charger.
- 30kW
- OCPP 1.6
- Portable with wheels and brake
- 4.3inch Touchscreen
- CCS EV charging station with CCS Combo 2 (CHAdeMO to order only)
- Portable- Plugs into 3-phase wall outlet 63 Amp 3-phase (30kW)
- Compatible with every EV
- LCD monitor
- 5m CCS2 Cable
- 12-month Warranty
- Meets Australian and European standards
- Robust construction and silver-plated contacts assure a reliable connection.
- LED User-friendly interface
- Soft-switching technology, efficiency up to 95%
- 30kW model
Input Requirements:
- AC Supply System Three-Phase, 5 Wire AC system
- Nominal Input Voltage AC380V±15%
- Input Frequency 45-65Hz
Environmental Requirements:
- Ambient Temperature Range -25 to 55°C
- Ambient Humidity 5 to 95%
- Storage Temperature -40 to 70°C
Mechanical Requirements:
- IP 54
- Cooling Air-cooled
Output Requirements:
- Number of Outputs 1
- Output DC 200-750V
User Interface & Display Requirements:
- Display & Touch-Screen Size 4.3 InchesTouch Screen
- User Authentication Mobile Application or User Interface / QR Code/RFID Card /Password Login
- Metering Information Consumption Units
Communication Requirements:
- Communication between EVSE and Central server Portable: /
- Interface between Charger and CMS Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements:
- Executive Standard IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc.
- Safety Parameters Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.
