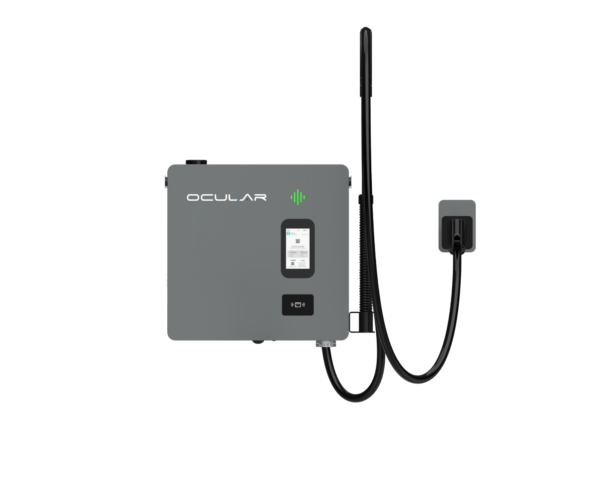

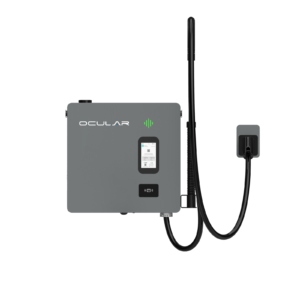

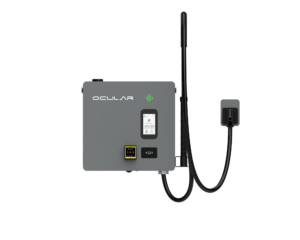

Ocular Titan DC Charger 40kW
Login to see pricesThe Ocular Titan 40kW is a compact DC fast charger designed for reliable EV charging in commercial, workplace, fleet and public environments.
The Ocular Titan DC Fast Charger 40kW is an ideal solution for reliable and convenient DC fast charging, suited for commercial, workplace, fleet and public charging applications.
- 40kW DC fast charging
- Compact design
- Easy installation
- Wall or floor mounted
- Premium 7-inch touchscreen display
- Multiple charging options including RFID, Mobile App, Payment Card, Plug & Charge and Autocharge
- Cable management helps keep charging cables off the ground, reducing trip hazards, minimising cable wear and keeping the charging area clean and organised
The Ocular Titan DC Fast Charger 40kW is a compact, reliable DC charging solution designed for commercial, workplace, fleet and public EV charging applications.
The Titan 40kW features a premium 7-inch touchscreen, flexible wall or floor mounting and an optional cable management system for easy everyday use. It supports multiple authentication and payment options, including RFID, mobile app, payment card, Plug & Charge and Autocharge.
CCS2 Fast Charging
The Titan 40kW is designed to support a wide range of electric vehicles using CCS2 charging.
Specifications:
- CCS2 DC charging
- Rated power output: 40kW
- Power system / voltage: 400 VAC ±15%
- DC voltage range: 150–1000V DC
- 7-inch touchscreen display
- RFID, Mobile App, Payment Card, Plug & Charge and Autocharge
- Optional Nayax credit card payment module
- Built-in 4G and Wi-Fi
- Ethernet and RS485 communication
- Energy meter accuracy: ±1%

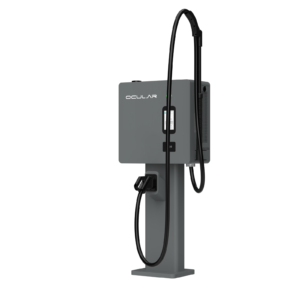

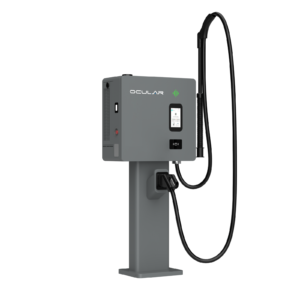

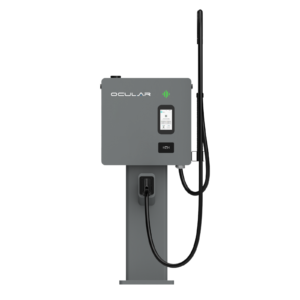

- Wall or floor mounted via optional pedestal
- Optional cable management system
- Suitable for indoor and outdoor use
Protection:
- IP55 casing protection
- IP65-rated power modules
- IK10 impact protection
- UV-resistant enclosure
- Insulation Class II
- Overvoltage Category III
- UL94 flammability rating
- 304 stainless steel enclosure
Function & Accessory:
- 7-inch touchscreen display
- RFID authentication
- Mobile app charging
- Payment card support
- Plug & Charge
- Autocharge
- Optional Nayax credit card module
- Built-in 4G
- Wi-Fi 2.4 GHz
- Ethernet communication
- RS485 communication
- Optional cable management system
- Optional pedestal for floor mounting
Working Environment:
- Operating temperature: -30°C to +50°C
- Storage temperature: -40°C to +75°C
- Relative humidity: up to 95%, non-condensing
- Suitable for indoor and outdoor use
Mechanical:
- Dimensions (H/W/D): 670 × 690 × 325mm
- Weight: 93kg
- Case material: 304 stainless steel
- Mounting: Wall or floor via optional pedestal
- An optional Nayax credit card module is available for convenient tap-and-pay charging.
- The charger supports payment card authentication and transactions.
- The Titan 40kW supports Plug & Charge, Autocharge, RFID and mobile app authentication.
