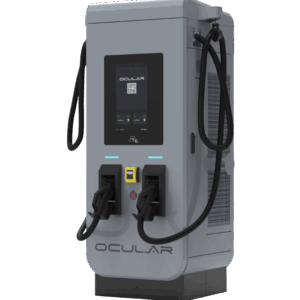

Ocular Atlas Pro DC Charger | 60kW | Dual Charger CCS2

The Ocular Atlas DC Charger is a transportable DC fast charger suitable for charging all types of electric vehicles, cars, trucks & buses.

SKU: IOC60NY2-EE Category:

QUICK OVERVIEW

  • The Ocular Atlas Pro is the ultimate fast DC charging solution, engineered to deliver convenience and efficiency in any carpark with its slim 470mm profile. The Ocular system is equipped to also power vehicles with high voltage battery systems. Compatible with all major EV Brands in Australia.
  • Featuring a large 21.5” display for a premium user experience and ad space to generate additional revenue, the Atlas Pro is perfect for commercial settings.
  • Rated Input Voltage: 3-phase 400V AC ± 15%
  • Can charge 2x EV’s at once
  • Compatible with all-electric vehicles with DC Capabilities

The Ocular Atlas Pro DC Charger is designed to deliver fast, reliable charging with its compact 488mm profile and robust 21.5” touchscreen display. This advanced system not only provides a premium user experience but also features ad space to generate additional revenue. Perfect for carparks and commercial spaces, the Atlas Pro allows seamless app billing or tap ‘n’ go payments, making it easy to turn charging stations into reliable income streams.

The Atlas Pro comes standard with dual CCS2 ports and offers optional CHAdeMO configurations, allowing it to charge two vehicles simultaneously. With OCPP compatibility (1.6J and upgradable to 2.0.1), smart load control, and secure user identification via mobile app or RFID, this unit is built for efficiency. The system is compatible with all major EV brands in Australia, ensuring versatile charging options for every setting.

Specifications:

  • Connectors: CCS-2 x 2, CHAdeMO (Optional)
  • DC Power Output: 60kW or 120kW (150V-1000V DC)
  • 200Amp Max per Connector
  • Supply Input: 3-Phase 400V ± 15%
  • Supply frequency:  50-60 Hz
  • IP55
  • Warranty: 2 Years
  • Cable Length: 7m (Retractable pulley)
  • Forced Air Cooling
  • RFID & Mobile App Authentication
  • Credit Card Terminal as Standard
  • Efficiency: >=94%
  • Power Factor: >=0.99
  • Display: 21.5” CTP Touchscreen with Ad Space
  • Operating Temperature: -30℃ to 55℃
  • Network Connection: Ethernet, 4G, Modbus (TCP/IP)
  • OCPP Compatibility: OCPP1.6J, Upgradable to OCPP2.0.1
  • Weight: 300kg (60kW) / 345kg (120kW)
  • Dimensions: 1900(H) x 1052(W) x 470(D) mm
  • Certifications: CE, IEC/EN 61851-1, IEC/EN 61851-23, IEC/EN 61851-21-2, RCM
  • Electrical Protection: Overcurrent, Short Circuit, Over/Under Voltage, Ground Fault, Lightning Surge, Over Temperature

Keep this in mind when installing:
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation

Please note charging speed is also dependent on the vehicle- The unit delivers 250Amp maximum x Voltage of the vehicle. If the vehicle can charge at a voltage above 600V it will be 150kW. If 400V it will charge at 100kW.

Atlas Pro Cropped

  • This charger comes with a Nayax credit card module at an extra cost
  • This unit is also operable with Exploren and Chargefox through OCPP as a standard with a subscription
