Ocular DC Charging
SKU: OC-60HY2

DC Titan | 60kW | Dual Charger

This versatile and innovative charging system is compatible with all EVs, and offers three different charging modes to suit your individual needs and solar production levels.

SKU: OC-60HY2 Category:
The Ocular DC Dual CCS2 Charger 60kW. The ideal solution for affordable DC charging which is ideally suited for commercial, fleet, and large residential uses.
  • Can charge 2x EV’s at once
  • Compact Size (90 kg)
  • 60 kW single output ( 360km of additional range per hour )
  • Easy Installation

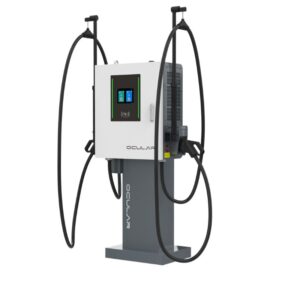

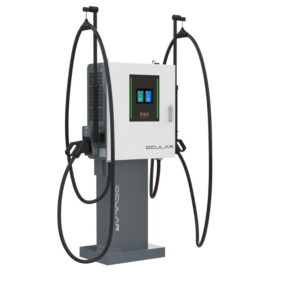

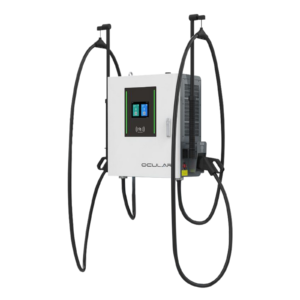

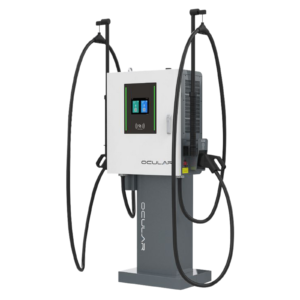

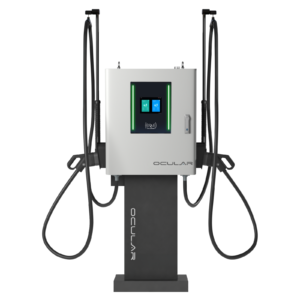

  • Wall or Floor mounted

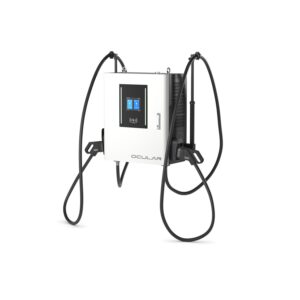

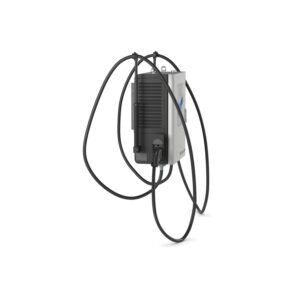

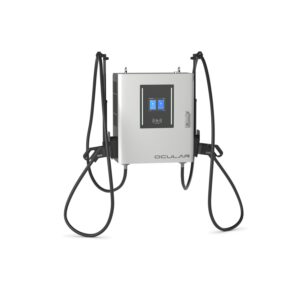

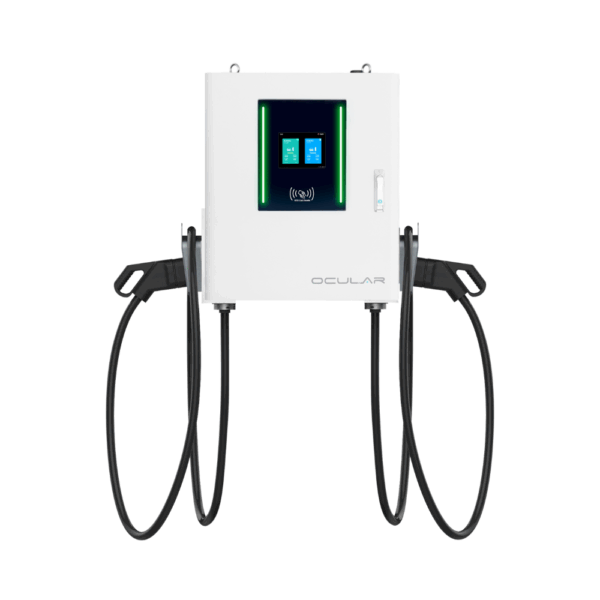

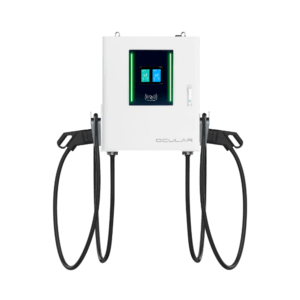

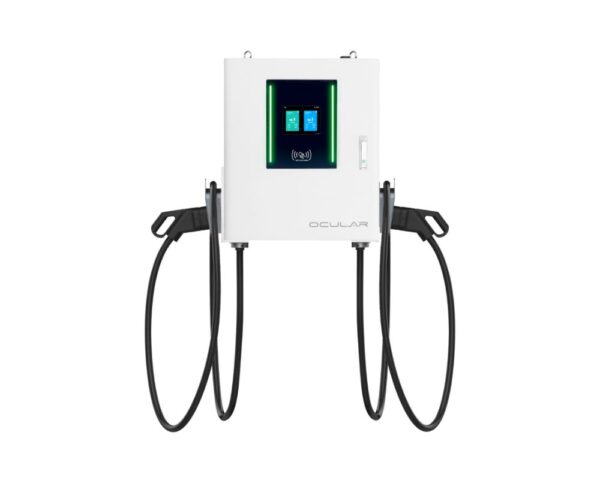

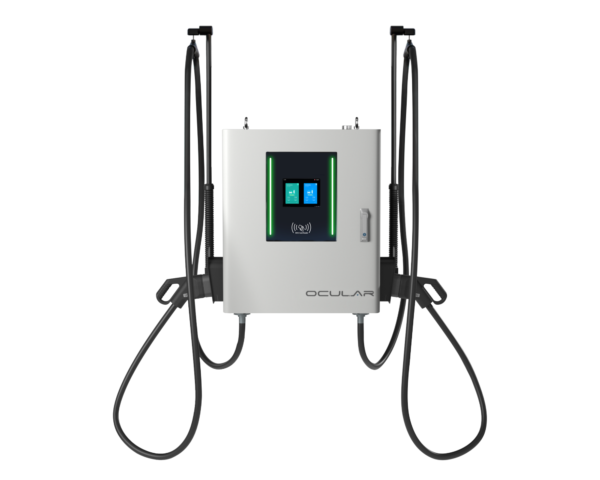

The Ocular Titan Dual DC Wallbox 60kW can fast charge 2 EV’s at once.  The unit comes standard with 2x CCS2 Cables designed to charge 1 or 2 EV’s simultaneously.

CCS 2, Fast-charging –
Audi, BMW, Hyundai, Jaguar, KIA, Mercedes EQ, Mini, MG, Polestar, Renault, TESLA, Volkswagen, Volvo, SEA Electric, Volvo Trucks, Daimler Trucks, Hino Truck, BYD Buses.
99% of EV’s in Australia use CCS2.



Specifications:

  • CCS 2 Dual charging port
  • Rated input voltage: 400V AC 3-Phase
  • Frequency: 50Hz/60Hz
  • DC plug type: Dual CCS Type 2 as standard – CHAdeMO to order
  • Output voltage range: 150~1000V DC
  • Max. output power: 60kW
  • 8-inch touchscreen display
  • RFID card, Mobile APP via OCPP
  • OCPP 1.6 & 2.0 Compatible
  • Load management available to control multiple units with load challenges.
  • Efficiency: ≥94%
  • Cable Length: 7m
  • RCM Certificate to Australian and European Standards

Protection:

  • Over voltage protection
  • Under voltage protection
  • Over load protection
  • Leakage current protection
  • Overtemperature protection
  • Short circuit protection
  • Lightning protection

Function & Accessory:

  • Indicator- Display: 8 inch touch screen
  • Emergency stop: Yes
  • Payment support: Yes vis OCPP
  • RFID/QR Code
  • Ethernet/4G inbuilt

Working Environment:

  • Operating temperature: -30°C ~+55°
  • Relative humidity: 5%-95% non-condensing
  • Maximum altitude: 2000m
  • Cooling: Forced air cooling
  • Standby power consumption:<25W
  • Protection degree: IP54

Mechanical:

  • Dimension (H/W/D)- 770/690/355mm
  • Weight- 85KG

Dual Credit Card Tower (2)

  • This charger comes with a Nayax credit card module at an extra cost
  • This unit is also operable with Exploren and Chargefox through OCPP as a standard with a subscription
