Ocular Satellite DC Charging
Ocular Satellite DC Charger – Liquid Cooling Dispenser
Login to see prices
QUICK OVERVIEW
The Ocular Satellite DC Liquid Cooling Dispenser is an ultra-high-power charging solution designed for heavy-duty and high-throughput EV applications. Engineered to support higher current delivery with liquid cooled cables, it enable faster charging performance for electric trucks, buses, and next-generation passenger vehicles. Integrated with the Satellite Base Station system, it delivers intelligent power distribution with maximum efficiency.
- Up to 600kW
- OCPP 2.0.1 & OCPP 1.6J
- Liquid-Cooled High Current Charging
- 7 inch Touchscreen
- Liquid-cooled DC satellite dispenser for ultra-fast charging
- 500kW output (up to 600kW maximum)
- Supports high-current CCS2 charging applications
- 150–1000V DC output range
- Liquid-cooled cable for improved thermal performance
- 5m charging cable
- 7” LCD touch screen interface
- LED status indication with app integration
- Ethernet connectivity
- Multiple authentication methods (App, RFID, QR Code, Credit Card optional)
- OTA software updates via web portal
- IP55 rated enclosure for outdoor installation

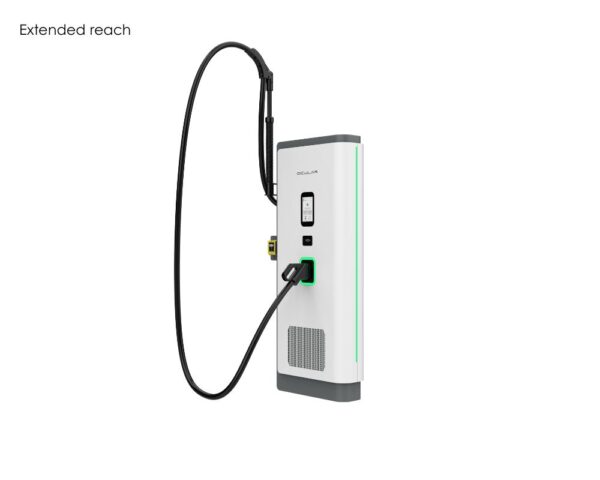

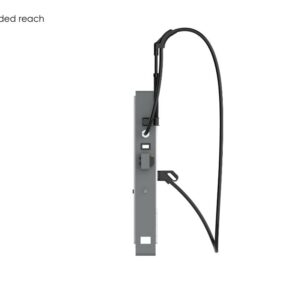

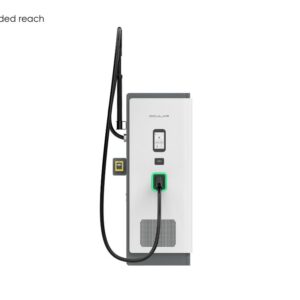

- Extended reach and low-height configurations available
- Designed for heavy vehicle and high-power charging use cases
- Floor-standing design
Input Requirements:
- AC Supply System: Supplied via Satellite Base Station
- Nominal Input Voltage: N/A (DC supplied from power cabinet)
Environmental Requirements:
- Ambient Temperature Range: -30 to 55°C
- Storage Temperature: -30 to 80°C
- Operating Altitude: ≤2000m
Mechanical Requirements:
- IP Rating: IP55
- Cooling: Liquid-cooled cable with air-cooled system
- Mounting: Floor standing
-

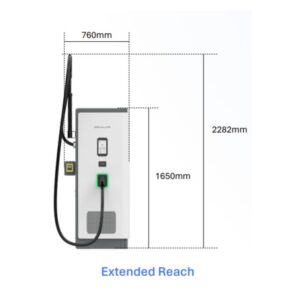

Dimensions:
- Standard: 2282 x 760 x 238 mm
- Alternate: 2282 x 814 x 238 mm
Output Requirements:
- Number of Outputs: 1
- Output Power: 500kW (up to 600kW max)
- Output Voltage: 150–1000V
- Output Current: 500A (up to 600A max)
User Interface & Display Requirements:
- Display & Touch-Screen Size: 7″ Touch Screen
- User Authentication: Mobile Application / RFID Card / QR Code / Credit Card (Optional)
- Metering Information: Consumption Units
- Status Indication: LED / LCD / APP
Communication Requirements:
- Communication between EVSE and Central server: Via Base Station
- Interface between Charger and CMS: Ethernet
- Protocols: OCPP 1.6J & OCPP 2.0.1, ISO15118 (PnC & EIM), DIN70121
Protection & Safety Requirements:
- Executive Standard: EN IEC 61851-1, EN IEC 61851-23
- Certifications: EN 61000-6 Series, EN IEC 61851-21-2, EN 301 489-1/-3, EN 300 330, EN 62479 RFID
- Safety Parameters: Over Current, Under Voltage, Surge Protection, Leakage Protection, Short Circuit, Over Temperature
