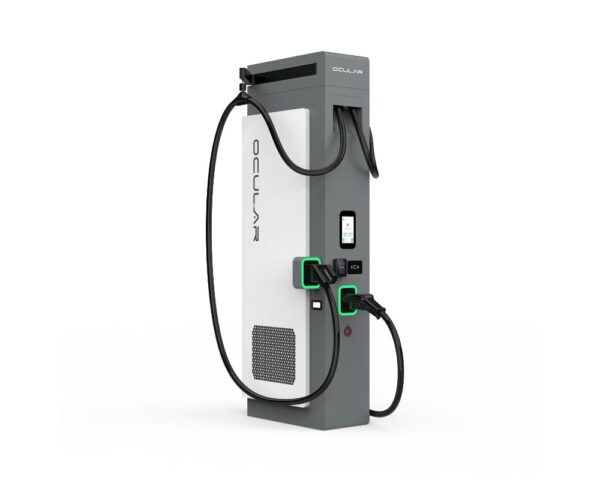

Dual Air Cooling Dispenser 2

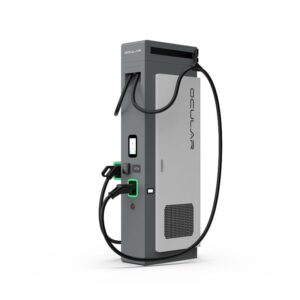

Dual Air Cooling Dispenser 1

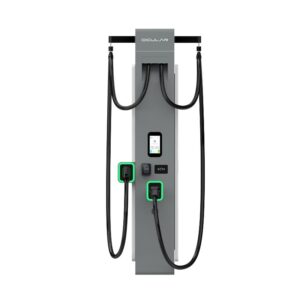

Dual Air Cooling Dispenser 3

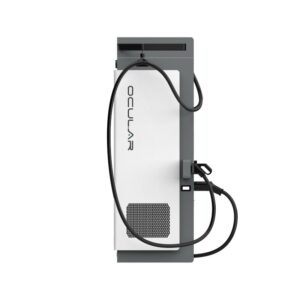

Dual Air Cooling Dispenser 4
Dual Air Cooling Dispenser 5
Dual Air Cooling Dispenser 6
Satellite Dc Charging Station
Dual Air Cooling Dispenser 2
Dual Air Cooling Dispenser 1
Dual Air Cooling Dispenser 3
Dual Air Cooling Dispenser 4
Dual Air Cooling Dispenser 5
Dual Air Cooling Dispenser 6
Satellite Dc Charging Station

Ocular Satellite DC Charger – Air Cooling Dual Dispenser

Category:



QUICK OVERVIEW

The Ocular Satellite DC Air Cooling Dual Dispenser is a high-performance dual-output charging solution designed to maximise utilisation at high-traffic charging sites. Integrated with the Satellite Base Station system, it enables simultaneous charging of two vehicles while dynamically distributing power between outputs. Ideal for public, fleet, and commercial applications, it delivers flexible, efficient, and scalable DC charging.

  • Up to 400kW + 400kW
  • OCPP 2.0.1 & OCPP 1.6J
  • Dual Vehicle Charging
  • 7 inch Touchscreen

  • Dual-output DC satellite dispenser for centralised charging system
  • Simultaneous charging of two vehicles
  • Each output configurable: 250kW, 300kW, 375kW, or 400kW
  • Supports dual CCS2 connectors (CCS1, CHAdeMO & GB/T optional)
  • 150-1000V DC output range per connector
  • 5m charging cables (per output)
  • 7″ LCD touch screen interface
  • LED status indication with app integration
  • Ethernet connectivity
  • Multiple authentication methods (App, RFID, QR Code, Credit Card optional)
  • OTA software updates via web portal
  • IP55 rates enclosure for outdoor use
  • Optimised for high utilisation charging sites
  • Floor-standing design

Input Requirements:

  • AC Supply System: Supplied via Satellite Base Station
  • Nominal Input Voltage: N/A (DC supplied from power cabinet)

Environmental Requirements:

  • Ambient Temperature Range: -30 to 55°C
  • Storage Temperature: -30 to 80°C
  • Operating Altitude: ≤2000m

Mechanical Requirements:

  • IP Rating: IP55
  • Cooling: Air-cooled
  • Mounting: Floor standing
  •  Dimensions: 2200 x 415 x 780 mm

Output Requirements:

  • Number of Outputs: 2
  • Output Power (per connector): 250kW / 300kW / 375kW / 400kW
  • Output Voltage: 150–1000V
  • Output Current: 250A / 300A / 375A / 400A (per output)

User Interface & Display Requirements:

  • Display & Touch-Screen Size: 7″ Touch Screen
  • User Authentication: Mobile Application / RFID Card / QR Code / Credit Card (Optional)
  • Metering Information: Consumption Units
  • Status Indication: LED / LCD / APP

Communication Requirements:

  • Communication between EVSE and Central server: Via Base Station
  • Interface between Charger and CMS: Ethernet
  • Protocols: OCPP 1.6J & OCPP 2.0.1, ISO15118 (PnC & EIM), DIN70121, CHAdeMO 2.0, GB/T 27930

Protection & Safety Requirements:

  • Executive Standard: EN IEC 61851-1, EN IEC 61851-23
  • Certifications: EN 61000-6 Series, EN IEC 61851-21-2, EN 301 489-1/-3, EN 300 330, EN 62479 RFID
  • Safety Parameters: Over Current, Under Voltage, Surge Protection, Leakage Protection, Short Circuit, Over Temperature
