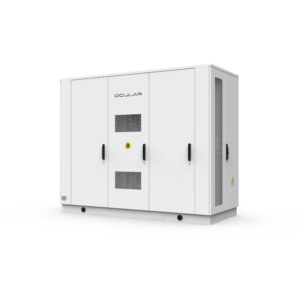

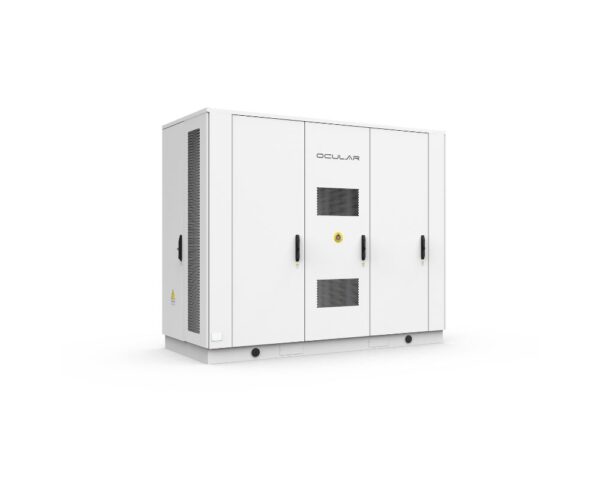

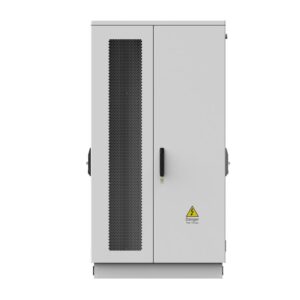

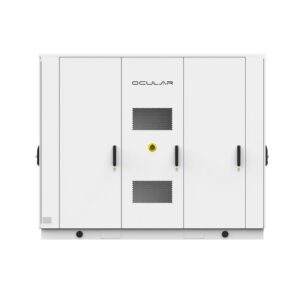

1600kW Base Station

• Ultra-high-power DC centralised charging cabinet
• Supports multiple satellite dispensers (including liquid-cooled high-power-units)
• Dynamic load allocation across all connected chargers
• 40kW independent air-duct cooled power modules
• Compatible with CCS2 and high-current charging applications
• 4G & Ethernet connectivity
• IP55 / IK10 rated enclosure for robust outdoor deployment
• ≥95% efficiency with advanced power electronics
• Designed for heavy vehicle and ultra-fast charging use cases
• Floor-standing design
• 1600kW base model

Input Requirements:

• AC Supply System: Three-Phase, 5 Wire AC system
• Nominal Input Voltage: 3-Phase 400VAC ±15% (4 Routes)
• Input Frequency: 50/60Hz

Environmental Requirements:

• Ambient Temperature Range: -30 to 55°C
• Storage Temperature: -30 to 80°C
• Operating Altitude: ≤2000m

Mechanical Requirements:

• IP Rating: IP55, IK10
• Cooling: Independent air-duct cooling (air-cooled modular system)
• Mounting: Floor standing
• Dimensions: 2300 x 2800 x 1200 mm

Output Requirements:

• Number of Outputs: Up to 20(configuration dependent)
• Minimum Adjustable Power: 80kW
• Power Module Size: 40kW modular units

Performance:

• Efficiency: ≥95%
• Power Factor: ≥0.98
• Harmonic Distortion (THDi): <5%

User Interface & Communication Requirements:

• Connectivity: Ethernet / 4G
• Communication Protocols: OCPP 1.6J & OCPP 2.0.1
• System Architecture: Centralised power distribution to satellite chargers

Protection & Safety Requirements

• Executive Standard: EN IEC 61851-1, EN IEC 61851-23
• Certifications: EN 61000-6 Series, EN IEC 61851-21-2, EN 301 489-1/-52, EN 301908-1/-13, EN 62311 LTE Band
• Safety Parameters: Over Current, Under Voltage, Surge Protection, Short Circuit, Over Temperature, Harmonic Control
