Ocular Satellite DC Charger – Air Cooling Dispenser 300A
Login to see prices
QUICK OVERVIEW
The Ocular Satellite DC Air Cooling Dispenser is a high-performance DC charging unit designed to work seamlessly with the Satellite Base Station system. Delivering flexible power outputs and supporting multiple connector types, it is ideal for public, fleet, and commercial charging environments. With a compact footprint, robust design, and intelligent integration, it provides reliable and efficient EV charging across wide range of applications.
- Up to 400kW
- OCPP 2.0.1 & OCPP 1.6J
- 7 inch Touchscreen
- Flexible Connector Options
- Satellite DC dispenser for centralised charging system
- Available in 250kW, 300kW, 375kW, and 400kW configurations
- Supports CCS2, CCS1, CHAdeMO & GB/T (model dependent)
- 150–1000V DC output range
- 5m charging cable
- 7” LCD touch screen interface
- LED status indication with app integration
- Ethernet connectivity
- Multiple authentication methods (App, RFID, QR, Credit Card optional)
- OTA software updates via web portal
- IP55 rated enclosure for outdoor use

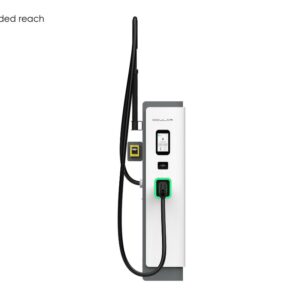

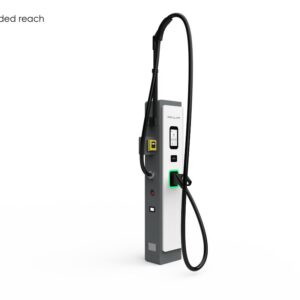

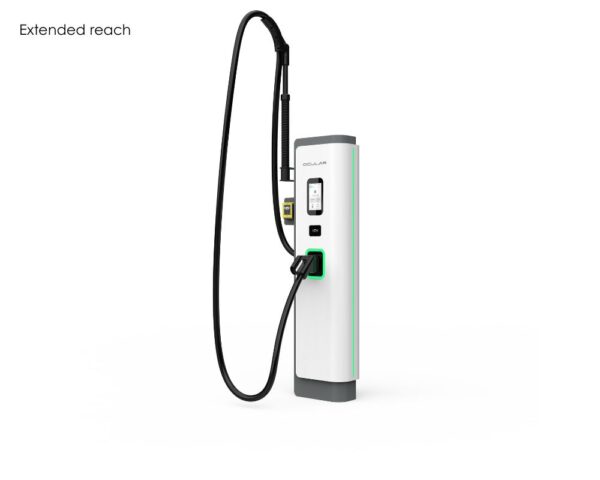

- Extended reach and low-height configurations available
- Floor-standing design
Input Requirements:
- AC Supply System: Supplied via Satellite Base Station
- Nominal Input Voltage: N/A (DC supplied from power cabinet)
Environmental Requirements:
- Ambient Temperature Range: -30 to 55°C
- Storage Temperature: -30 to 80°C
- Operating Altitude: ≤2000m
Mechanical Requirements:
- IP Rating: IP55
- Cooling: Air-cooled
- Mounting: Floor standing
-
Dimensions:

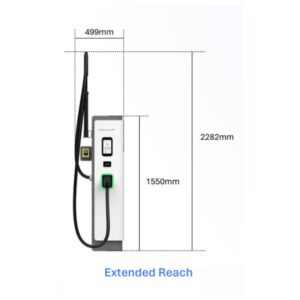

- Extended Reach: 2282 x 499 x 238 mm
- Low Height (to order): 2005 x 553 x 238 mm
Output Requirements:
- Number of Outputs: 1
- Output Power: 250kW / 300kW / 375kW / 400kW
- Output Voltage: 150–1000V
- Output Current: 250A / 300A / 375A / 400A
User Interface & Display Requirements:
- Display & Touch-Screen Size: 7″ Touch Screen
- User Authentication: Mobile Application / RFID Card / QR Code / Credit Card (Optional)
- Metering Information: Consumption Units
- Status Indication: LED / LCD / APP
Communication Requirements:
- Communication between EVSE and Central server: Via Base Station
- Interface between Charger and CMS: Ethernet
- Protocols: OCPP 1.6J & OCPP 2.0.1, ISO15118 (PnC & EIM), DIN70121, CHAdeMO 2.0, GB/T 27930
Protection & Safety Requirements:
- Executive Standard: EN IEC 61851-1, EN IEC 61851-23
- Certifications: EN 61000-6 Series, EN IEC 61851-21-2, EN 301 489-1/-3, EN 300 330, EN 62479 RFID
- Safety Parameters: Over Current, Under Voltage, Surge Protection, Leakage Protection, Short Circuit, Over Temperature
