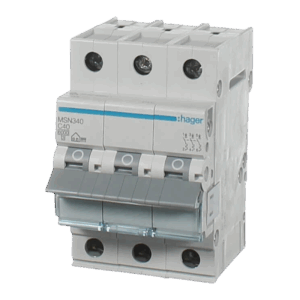

Hager MSN340 | MCB 3P 6KA C-40A 3M

SKU: HAG-MSN340 Category: Switchgears + Boards

Technical properties
Electric current
Rated current	40 A
Rated current -15°C	48,4 A
Rated current -10°C	47,5 A
Rated current -5°C	46,6 A
Rated current at 0°C	45,8 A
Rated current 5°C	44,8 A
Rated current 10°C	43,9 A
Rated current 15°C	43 A
Rated current at 20°C	42 A
Rated current 25°C	41 A
Rated current 30°C	40 A
Rated current 35°C	38,8 A
Rated current at 40°C	37,5 A
Rated current at 45°C	36,2 A
Rated current at 50°C	34,8 A
Rated current 55°C	33,4 A
Rated current 60°C	31,9 A
Rated current 65°C	30,3 A
Rated current 70°C	28,6 A
Architecture
Type of pole	3P
Curve	C
Capacity
Number of modules	3
Installation, mounting
Nominal tightening torque top terminal	2,80 – 2,80 Nm
Nominal tightening torque down terminal	2,80 – 2,80 Nm
Nominal tightening torque	2,80 – 2,80 Nm
Type of bottom connection for modular devices	biconnect
Type of top connection for modular devices	Screw terminal
360° mounting position possible	Yes
Main electrical attributes
Rated short-circuit breaking capacity Icn AC (IEC 60898-1)	6 kA
Voltage
Rated operational voltage (Ue)	415 – 415 V
Type voltage supply	AC
Rated insulation voltage (Ui)	500 V
Rated impulse withstand voltage (Uimp)	4000 V
Frequency
Frequency	50 – 60 Hz
Connection
Cross-section of input/output with screws, for massive conductors	1 – 35 mm²
Cross-section of input/output with screws, for flexible conductors	1 – 25 mm²
Cross-section of input with screws, for flexible conductors	1 –
