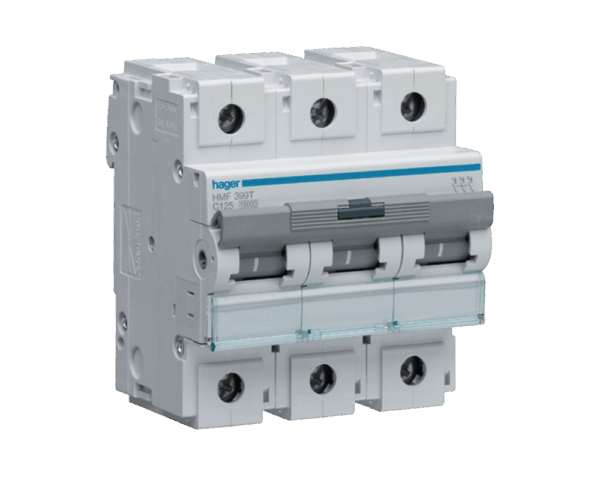

Hager HMF399T | MCB 3P 10KA C-125A 4.5M
Login to see pricesQUICK OVERVIEW
| Technical properties | |
|---|---|
| Architecture | |
| Type of pole | 3P |
| Curve | C |
| Capacity | |
| Number of modules | 4,50 |
| Connectivity | |
| Top connection alignment for modular devices | Aligned terminal |
| Down connection alignment for modular devices | Aligned terminal |
| Dimensions | |
| Height | 90 mm |
| Width | 80 mm |
| Depth | 70 mm |
QUICK OVERVIEW
Contact us for pricing and more information.
| Technical properties | |
|---|---|
| Architecture | |
| Type of pole | 3P |
| Curve | C |
| Voltage | |
| Rated operational voltage (Ue) | 400 – 415 V |
| Type voltage supply | AC |
| Rated insulation voltage (Ui) | 500 V |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Frequency | |
| Frequency | 50 – 60 Hz |
| Electric current | |
| Rated current | 125 A |
| Rated short-circuit breaking capacity Icn under 230 V AC (IEC 60898-1) | 10 kA |
| Rated ultimate short-circuit breaking capacity Icu under 230 V AC (IEC 60947-2) | 10 kA |
| Rated ultimate short-circuit breaking capacity Icu under 400 V AC (IEC 60947-2) | 10 kA |
| Installation, mounting | |
| Nominal tightening torque | 3,5 – 5,0 Nm |
| Type of top connection for modular devices | Screw terminal |
| Type of bottom connection for modular devices | Screw terminal |
| Nominal tightening torque down terminal | 3,60 – 3,60 Nm |
| Nominal tightening torque top terminal | 3,60 – 3,60 Nm |
| Main electrical attributes | |
| Rated short-circuit breaking capacity Icn AC (IEC 60898-1) | 10 kA |
| Power | |
| Total power loss under IN | 34,93 W |
| Endurance | |
| Electric endurance (number of cycles) | 4000 |
| Number of mechanical operations | 20000 |
| Connection | |
| Cross-section of input/output (massive conductors) | 1 – 70 mm² |
| Cross-section of input/output (flexible conductors) | 1 – 50 mm² |
| Cross-section flexible conductor | 50 mm² |
| Cross-section rigid conductor | 70 mm² |
| Use conditions | |
| Degree of pollution (IEC 60664 / IEC 60947-2) | 3 |
| Air humidity protection | For all climates |
| Operating temperature | -25 – 70 °C |
| Capacity | |
| Number of modules | 4,50 |
| Connectivity | |
| Top connection alignment | Aligned terminal |
| Down connection alignment | Aligned terminal |
| Dimensions | |
| Height | 90 mm |
| Width | 80 mm |
| Depth | 70 mm |
