Ocular Switchgears + Boards
SKU: HAG-BD163T

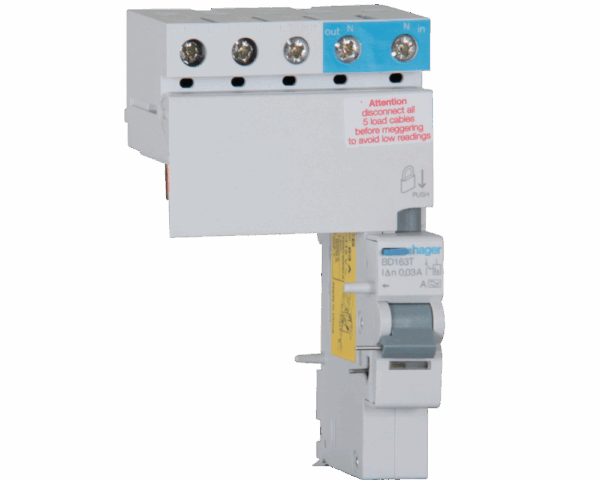

Hager BD163T | Add-On Block 3P 63A 30MA A 1MOD
Login to see pricesQUICK OVERVIEW
| Technical properties | |
|---|---|
| Voltage | |
| Rated operational voltage (Ue) | 240 – 415 V |
| Rated insulation voltage (Ui) | 500 V |
| Rated impulse withstand voltage (Uimp) | 4000 V |
| Frequency | |
| Frequency | 50 – 50 Hz |
| Electric current | |
| Rated residual operating current (Idn) | 30 mA |
| Rated current | 63 A |
| Architecture | |
| Number of poles | 3 |
| Neutral position | Right |
| Capacity | |
| Number of modules | 1 |
| Connectivity | |
| Type of connection | Screw terminal |
| Dimensions | |
| Height | 121 mm |
| Width | 70.80 mm |
| Depth | 69.10 mm |
