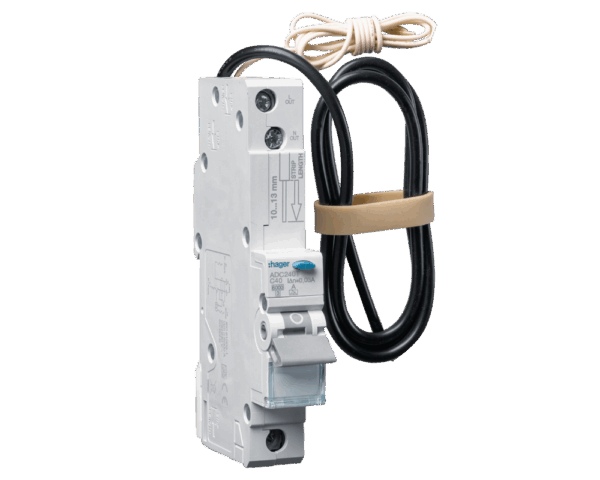

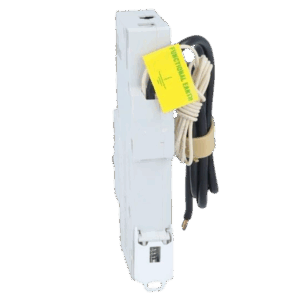

Hager ADC240T | RCBO 1M 1P 6KA C-40A 30MA A

SKU: HAG-ADC240T Category: Switchgears + Boards

Technical Properties

Architecture
Type of pole	1P
Curve	C
Rated current	40 A
Rated residual operating current Idn	30 mA
Rated current -25°C	48.66 A
Rated current -20°C	47.88 A
Rated current -15°C	47.09 A
Rated current -10°C	46.30 A
Rated current -5°C	45.51 A
Rated current 0°C	44.73 A
Rated current 5°C	43.94 A
Rated current 10°C	43.15 A
Rated current 15°C	42.36 A
Rated current 20°C	41.58 A
Rated current 25°C	40.79 A
Rated current 30°C	40 A
Rated current 35°C	39.15 A
Rated current 40°C	38.30 A
Rated current 50°C	36.60 A
Rated current 55°C	35.75 A
Rated current 60°C	34.90 A
Min./max. threshold value of AC thermal operation	1.13 – 1.45 A
Residual current type	A
Ingress Protection (IP) class	IP20
Rated short-circuit breaking capacity Icn AC (IEC 60898-1)	6 kA
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	4000 V
Rated operational voltage Ue	230 – 240 V
Overvoltage category (IEC 60947-1)	3
Total power loss under IN	12.50 W
Frequency	50 – 60 Hz
Max. Altitude	2000 m
Class of energy limitation I²t	3
Operating temperature	-5 – 40 °C
Storage/transport temperature	-40 – 70 °C
Electric endurance (cycles)	2000
Mechanical operations	10000
Input cross-section (flexible)	1 – 10 mm²
Input cross-section (massive)	1 – 16 mm²
Input/output cross-section (flexible)	1 – 16 mm²
Input/output cross-section (massive)	1 – 25 mm²
Top connection type	Screw terminal
Bottom connection type	Biconnect
Number of modules	1
Height	115 mm
Width	17.80 mm
Depth	70 mm
Suitable for DIN Rail	Yes
