BUNDLE | Metrel DC EV Charging Tester | MI 3155 IT-XD + A 1732 Adapter

This electric vehicle charging station testing equipment allows you to test for live and dead installation, verification and diagnosis, as well as high volume RCD testing with bar code scanning of asst IDs. Test results can be saved for downloading to reporting software.

Additional InstalTest XD Functionality

• User defined Auto Sequences allow users to combine multiple single electrical tests into a single key press operation.
• User defined Inspections allows users to generate their own visual and functional inspections, replacing paper-based checklists.
• Includes ES Manager PRO software license for installation structure, Auto Sequences and Inspections upload/download, and Excel output.

The unit includes features never before seen on a multifunction installation tester:

• Touch screen guarantees quick and intuitive operation. No confusing nested menus or rotary switches
• Basic and advanced live and dead socket and installation testing with tick or cross result and fault diagnosis
• Auto-sequences to verify sockets and installations in seconds by combining up to 6 single tests into a single push button sequence
• Power & total harmonic distortion (THD) measurements
• Illuminance measurement and logging
• Wire tracing and fuse identification

High Volume RCD Testing:

• Bar-code scanner input of asset IDs for high volume testing applications such as testing and recording 1,000s of RCDs in industrial applications
• Logging of RCD push-button tests with a couple of keypresses. Ideal for high volume mandatory RCD testing and record keeping applications
• Random phase RCD test selection for medical installations.

InstalTest XD Overview:

• Replaces 5 instruments with 12 tests in 1 instrument
• Socket and installation testing of live and dead circuits with fault diagnosis
• RCD testing and logging as well as logging of RCD Push Button Tests
• Inbuilt limits set to AS/NZS3017

Visual Inspections:

• The InstalTest XD allows user defined visual inspections to be carried out on-screen and downloaded, replacing paper-based checklists

Adapter:

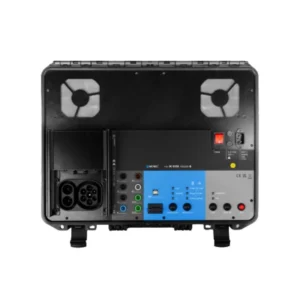

The Metrel A-1732 DC EVSE Adapter is a specialised tool designed for electric safety and functional testing of Electric Vehicle Supply Equipment for both AC & DC configurations. It supports a range of connector types including, CCS2, CHAdeMO, and Type 2 AC plugs. The A 1732 adapter enables initiation when paired with MI 3155 of communication protocols, such as ISO 15118, DIN 70121, CHAdeMO, and Low-level PWM, and it can also simulate errors on the Control Pilot (CP) signal and Protective Earth (PE) connections to assess EVSE response. When paired with the MI 3155 EurotestXD installation tester, the A 1732 DC EVSE Adapter can be used to log the charging protocol, perform measurements and testing required for EVSE commissioning and for periodic safety testing.

Key Features:

• Communication with A 1732 DC EVSE Adapter via Bluetooth;
• Predefined test protocol for DC EVSE in the memory structure;
• All measurement can be started and viewed on MI 3155 EurotestXD;
• Performing accurate 4-wire measurements with 200 mA measuring current;
• Insulation resistance with DC voltage up to 2500 V;
• Functional test with a live view of charge protocol and voltages and currents on the test terminals;
• Remote faults triggering and reaction time measuring;
• DC impedance measurement;
• Discharge time measurement;
• Asymmetric IMD test with a setupable fault resistance between 20 kΩ and 640 kΩ at 5 kΩ intervals;
• Programmable AUTO SEQUENCEs* for customizing the test protocol;
• PC SW Metrel ES Manager for measurement pre and post processing: preparation of the test structure, result download, tree-view, table view and graphical view, storing and printing the reports.

Measurement functions:

• Support for CCS2, CHAdeMO and AC EVSE;
• Functional test protocol for measuring voltages and current on the terminals;
• Fault simulation on CCS2 and Type 2 for CP open, PE open and CP short;
• Fault simulation on CHAdeMO for CP3 open, PE open and CAN stop;
• Banana test points for DC, AC and PE terminals;
• Double PE test terminals (PE(C) and PE(P)) for a true 4-wire Rlow measurement;
• Bluetooth communication with MI 3155 EurotestXD;
• Overvoltage category CAT III / 300 V;
• CCS ISO 15118-1 or DIN 70121 communication support;
• CHAdeMO version 0.9.1 and higher communication support;
• AC EN 61851-1 communication support;
• Simulated EV Battery of 300 V and 5 A.
