Ocular Switchgears + Boards
SKU: HAG-IN-L3P-48
EV-DB Indoor IP43 48 Pole – 70% Loaded -3 Phase RCBO
Login to see pricesQUICK OVERVIEW

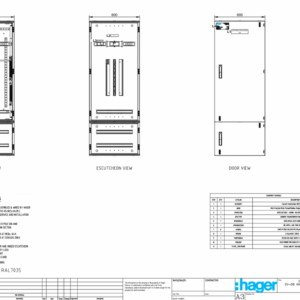

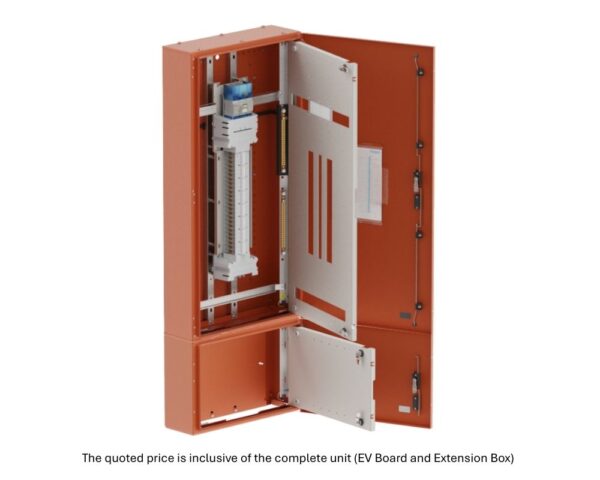

- Hager Performa Apex Series 48 ways + extension box IP43 metal distribution board (standard orange) with 250A main switch and equipment listed on bill of materials.
- Rated Operational Voltage 415V 50HZ
- Dimension -1600mm H x 600mm W x 200mm D
- 11 x 3 Pole RCBO 40A
- Emergency & Exit or any other lighting control is not included in the offer.
- NCC Certified – Fully Compliant with Australian and New Zealand regulations
- Multifunction Meter DIN Rail 1x3P RS48
QUICK OVERVIEW
- Hager Performa Apex Series 48 ways + extension box IP43 metal distribution board (standard orange) with 250A main switch and equipment listed on bill of materials.
- Rated Operational Voltage 415V 50HZ
- Dimension -1600mm H x 600mm W x 200mm D
- 11 x 3 Pole RCBO 40A
- Emergency & Exit or any other lighting control is not included in the offer.
- NCC Certified – Fully Compliant with Australian and New Zealand regulations
- Multifunction Meter DIN Rail 1x3P RS48
- Comes fully assembled for easy installation

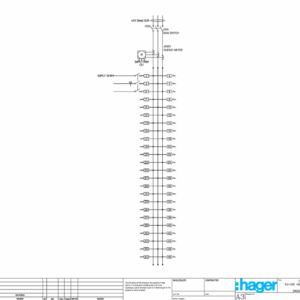

| Product Code | Item Description | Quantity |
|---|---|---|
| JPA0EXTDX | EXTENSION BOX, APEX, 48P, X15 | 1 |
| JPASMSEAL1 | SMOKE SEAL FOR APEX 3.5M | 1 |
| JKM01 | MULTIFUNCTION METER DIN RAIL 1X3P RS485 | 1 |
| EC25250CT | CT BGUK 3P 250A/330MV CL.1 PITCH 35MM | 1 |
| PGMF1300AU | 1.3M – METER VOLTAGE SUPPLY CABLE | 1 |
| PGRJ1000 | RJ45 CONNECTOR CABLE | 1 |
| MSN306 | MCB 3P 6KA C-6A 3M | 1 |
| ADC240T | RCBO 1M 1P 6KA C-40A 30MA A | 34 |
| MOD1 | HBR PROJECTS – ASSEMBLY & WIRING | 1 |
| JPD4800S25DX | DB, APEX+, 48P, 250A ISO, X15 | 1 |
