Ocular Switchgears + Boards
SKU: HAG-IN-L3P-36

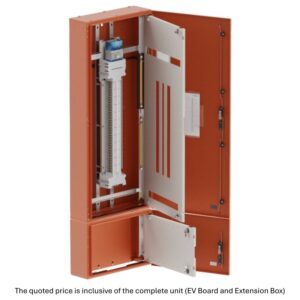

EV-DB Indoor IP43 36 Pole -70% Loaded – 3 Phase RCBO
Login to see pricesQUICK OVERVIEW
- Hager Performa Apex Series 36 ways + extension box IP43 metal distribution board (standard orange) with 250A main switch and equipment listed on bill of materials.
- Rated Operational Voltage 415V 50HZ
- 8 x 3 Pole RCBO 40A.
- Emergency & Exit or any other lighting control is not included in the offer.
- Dimension – 1600mm H x 600mm W x 200mm D
- NCC Certified – Fully Compliant with Australian and New Zealand regulations
- Multifunction Meter DIN Rail 1x3P RS48
QUICK OVERVIEW
- Hager Performa Apex Series 36 ways + extension box IP43 metal distribution board (standard orange) with 250A main switch and equipment listed on bill of materials.
- Rated Operational Voltage 415V 50HZ
- 8 x 3 Pole RCBO 40A.
- Emergency & Exit or any other lighting control is not included in the offer.
- Dimension – 1600mm H x 600mm W x 200mm D
- NCC Certified – Fully Compliant with Australian and New Zealand regulations
- Multifunction Meter DIN Rail 1x3P RS48
- Comes fully assembled for easy installation
| Product Code | Item Description | Quantity |
|---|---|---|
| JPA0EXTDX | EXTENSION BOX,APEX,48P,X15 | 1 |
| JPASMSEAL1 | SMOKE SEAL FOR APEX 3.5M | 1 |
| JPD3600S25DX | DB,APEX+,36P,250A ISO,X15 | 1 |
| JKM01 | MULTIFUNCTION METER DIN RAIL 1X3P RS485 | 1 |
| EC25250CT | CT BGUK 3P 250A/330MV CL.1 PITCH 35MM | 1 |
| PGMF1300AU | 1.3M – METER VOLTAGE SUPPLY CABLE | 1 |
| PGRJ1000 | RJ45 CONNECTOR CABLE | 1 |
| MOD1 | HBR PROJECTS – ASSEMBLY & WIRING | 1 |
| ALM440T | RCBO ELE 3M 3P+N 6KA C-40A 30MA A | 8 |
| MSN306 | MCB 3P 6KA C-6A 3M | 1 |
