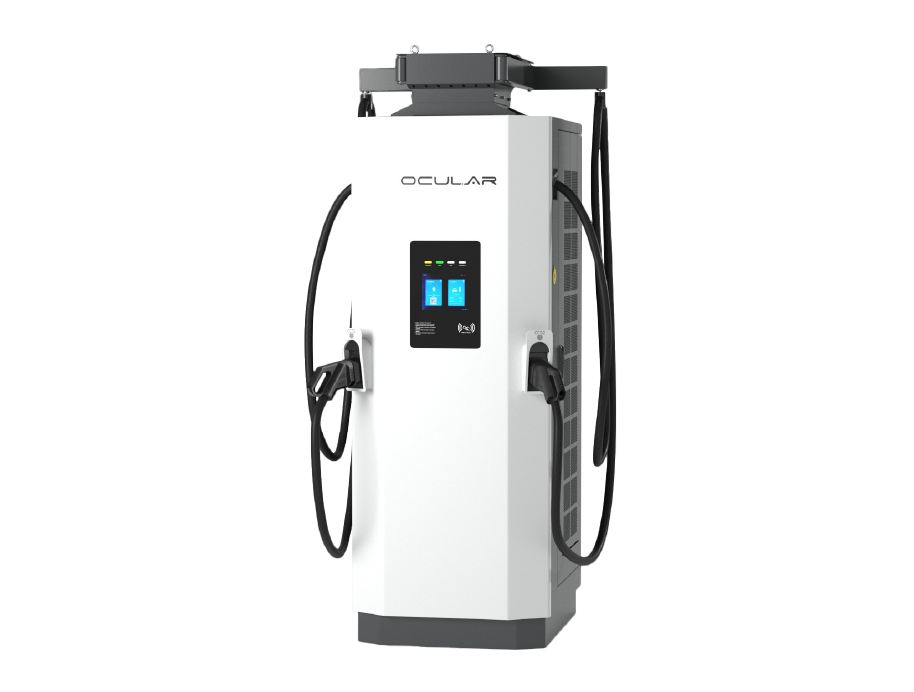

Ocular DC Orion 240-420kW

DC Charging built to scale with you

Ocular has developed the Orion to be a flexible DC Charging solution. This ultra fast model is available in power variations from 240kW to 420kW. Perfect for highway stops or fleets of electric buses, trucks or mining vehicles. This floor mounted  modular DC charging system can scale with your requirements. Add up to 400km of range for every 10 minutes charged! (vehicle dependent)

This advanced charging system provides the ultimate customer experience so EV drivers can spend less time charging and get back on the road sooner. With two tethered 5m type 2 cables, this floor mounted system combines speed and function to simultaneously charge two EVs. Most EV models will be charged in under half an hour.

Available with an a credit card module add on. Contact us for more details.
Atlas New (copy)

Fast, simple and reliable.

The Ocular Orion, design by industry experts, is suited to withstand a wide range of Australian weather conditions, from extreme cold to scorching heat. The LCD screen provides live feedback to give your customers maximum control.

  • RCD inbuilt
  • 4G modem inbuilt
  • 8 inch LCD touchscreen display
  • Metallic Frame
  • RFID compatible
  • MID metering
  • OCPP 1.6J, 2.0 (fleet and billing software)
Technical Specs
Ocular Orion Brochure
Img 26

Reliable EV Charging Made Simple
EV Charger
Perfect for the Public

Perfect for high turnover areas or heavy electric vehicles. This DC charger allows faster charging with less infrastructure. Up to 420kW of power adding up to 400km of range per 10 minutes of charge, depending on the vehicle.
EV Charger
Live Monitoring

Manage, analyse, and bill for charging all from an easy-to-use online platform. With full OCPP access, any networking software can be used with Ocular Orion.
EV Charger
Ocular Expertise

The Ocular Orion Model delivers uncompromised speed with class leading compact casing to survive Australian weather conditions. Be confident in our expert design and advice on your next public or commercial charging installation.

Specifications

Technical Specifications

Get to know the Ocular Orion 240-420kW Charger inside out.

General Specifications

Output Range 240kW, 300kW, 360kW, 420kW
Connection 5m Straight Cable as standard, other cable lengths available on request
Certifications CE, IEC/EN 61851-1, IEC/EN 61851-23, IEC/EN 61851-21-2, RCM
Protection Degree IP55
Operating Temperature -30°C to +55°C
Dimensions 2338mm x 1050mm x 956mm
Weight 590kg – 755kg, dependent on model

Downloads

Download Icon
Datasheet
pdf File
Download Icon
Brochure
pdf File
