Ocular Powered By Hager
EV Charger Distribution Board
A partnership delivering NCC certified EV charger distribution boards for Australia & New Zealand’s next generation of buildings.
Ocular Charging has teamed up with Hager to deliver the EV distribution board Australia trusts for compliant, future-ready charging infrastructure. Suitable for multi-residential, commercial, and mixed-use projects. We bring together Ocular’s intelligent EV charging technology with Hager’s high-quality, NCC-compliant EV distribution boards engineered for Australia & New Zealand’s building standards.

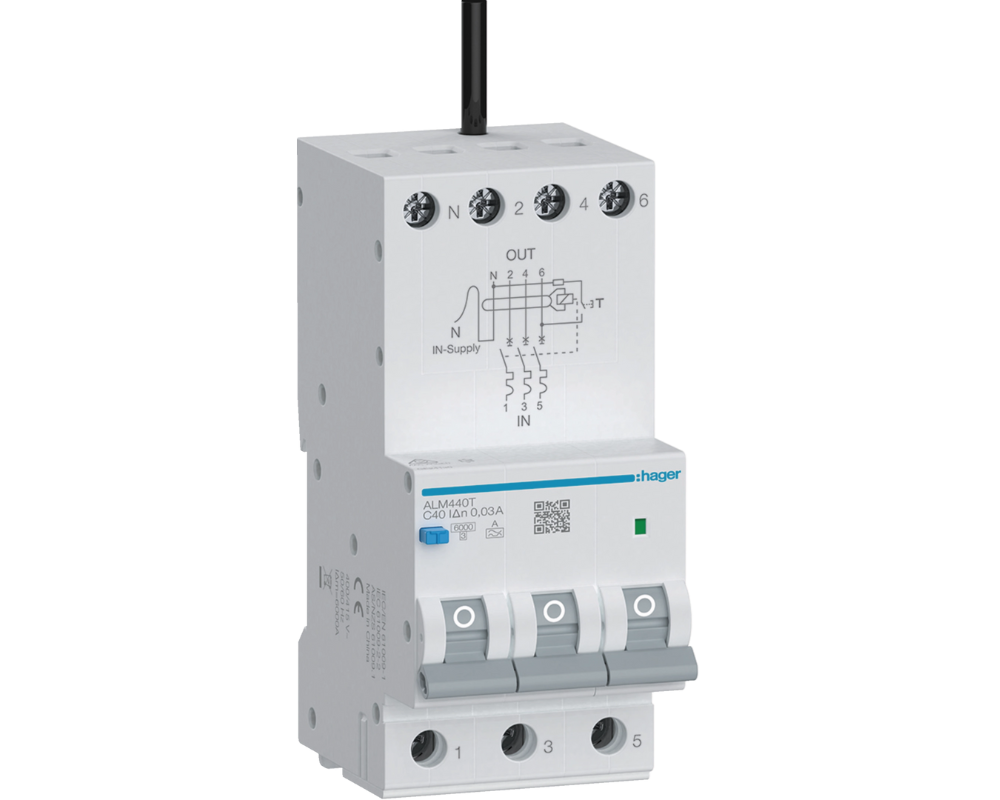

| Architecture | |
|---|---|
| Type of pole | 3P+N |
| Curve | C |
| Safety | |
| Residual current type | A |
| Ingress Protection (IP) class | IP20 |
| Capacity | |
| Number of modules | 3 |
| Dimensions | |
| Height | 84 mm |
| Width | 54 mm |
| Depth | 70 mm |
| Technical properties | |
|---|---|
| Voltage | |
| Rated operational voltage (Ue) | 240 – 415 V |
| Rated insulation voltage (Ui) | 500 V |
| Rated impulse withstand voltage (Uimp) | 4000 V |
| Frequency | |
| Frequency | 50 – 50 Hz |

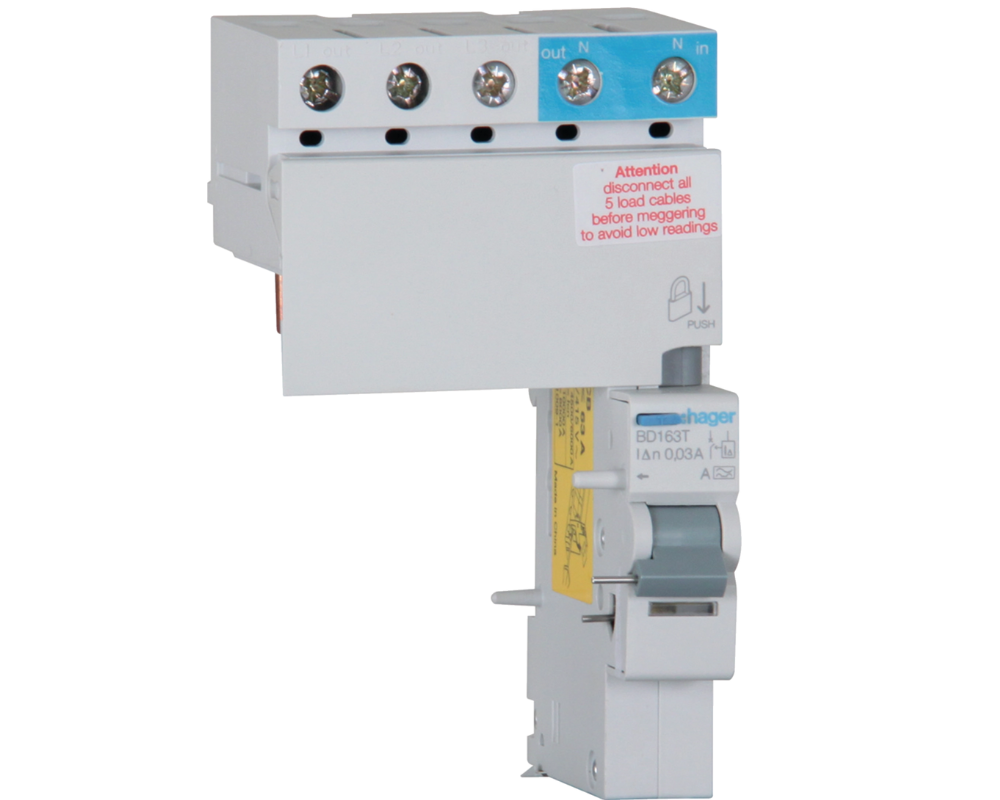

| Electric current | |
| Rated residual operating current (Idn) | 30 mA |
| Rated current | 63 A |
| Architecture | |
| Number of poles | 3 |
| Neutral position | Right |
| Capacity | |
| Number of modules | 1 |
| Connectivity | |
| Type of connection | Screw terminal |
| Dimensions | |
| Height | 121 mm |
| Width | 70.80 mm |
| Depth | 69.10 mm |
| Technical properties | |
|---|---|

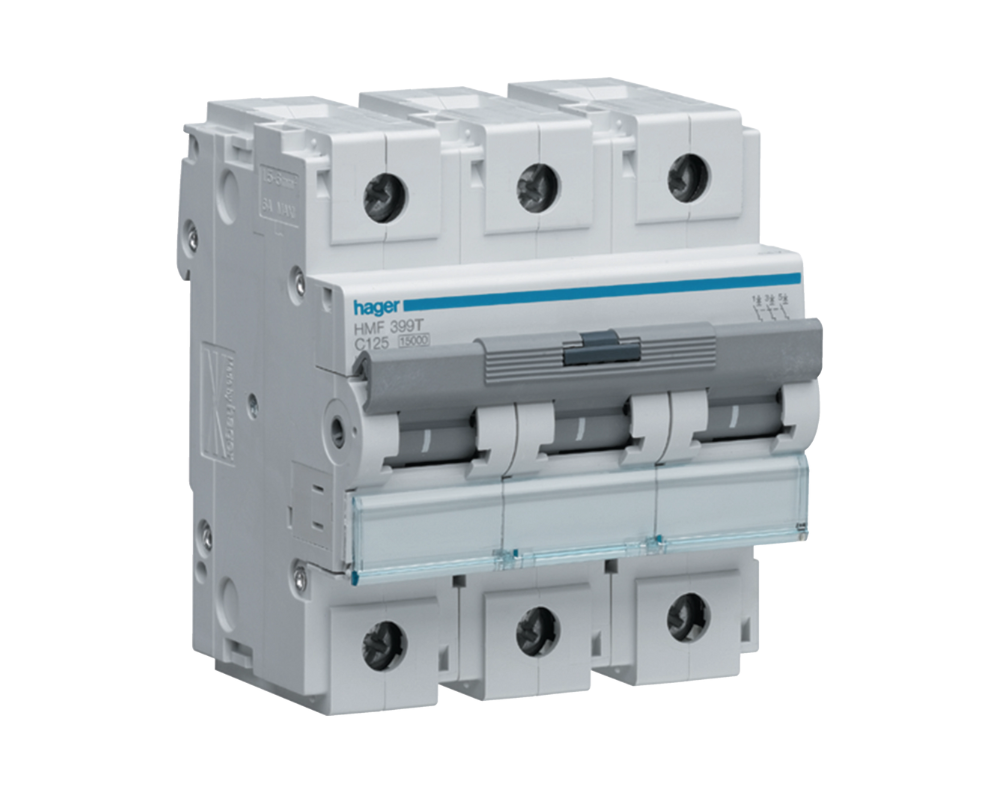

| Architecture | |
| Type of pole | 3P |
| Curve | C |
| Capacity | |
| Number of modules | 4,50 |
| Connectivity | |
| Top connection alignment for modular devices | Aligned terminal |
| Down connection alignment for modular devices | Aligned terminal |
| Dimensions | |
| Height | 90 mm |
| Width | 80 mm |
| Depth | 70 mm |

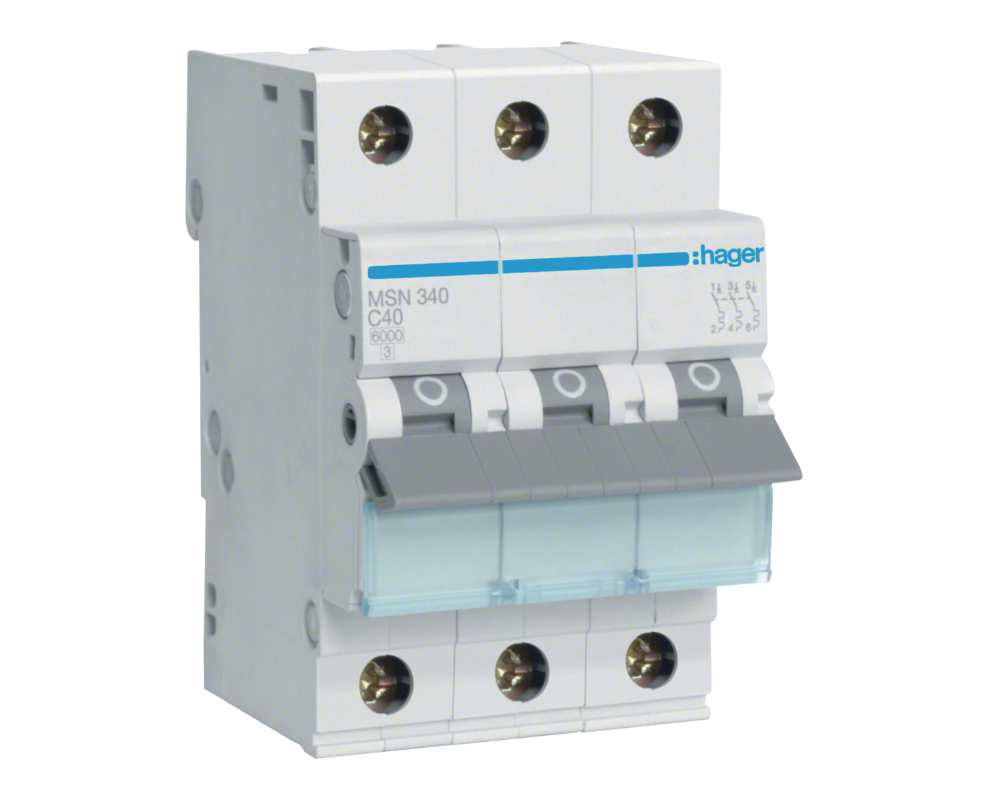

| Architecture | |
|---|---|
| Type of pole | 3P |
| Curve | C |
| Capacity | |
| Number of modules | 3 |
| Safety | |
| Ingress Protection (IP) class | IP20 |
| Dimensions | |
| Height | 83 mm |
| Width | 52,50 mm |
| Depth | 70 mm |
An NCC compliant EV distribution board simplifies the approval process.
Install chargers now without the need for expensive upgrades later
One contact for both chargers and compliant boards
Our EV-DB range is pre-built, pre-tested which means quicker delivery and reduced delays.
The National Construction Code (NCC) now mandates EV-ready infrastructure in many new developments. That means electricians, builders, and developers need a turnkey solution that ensures compliance and makes scaling easy.
By combining Ocular’s smart charging ecosystem with Hager’s reliable switchboards, we make EV readiness simple, scalable, and built to last. Read More

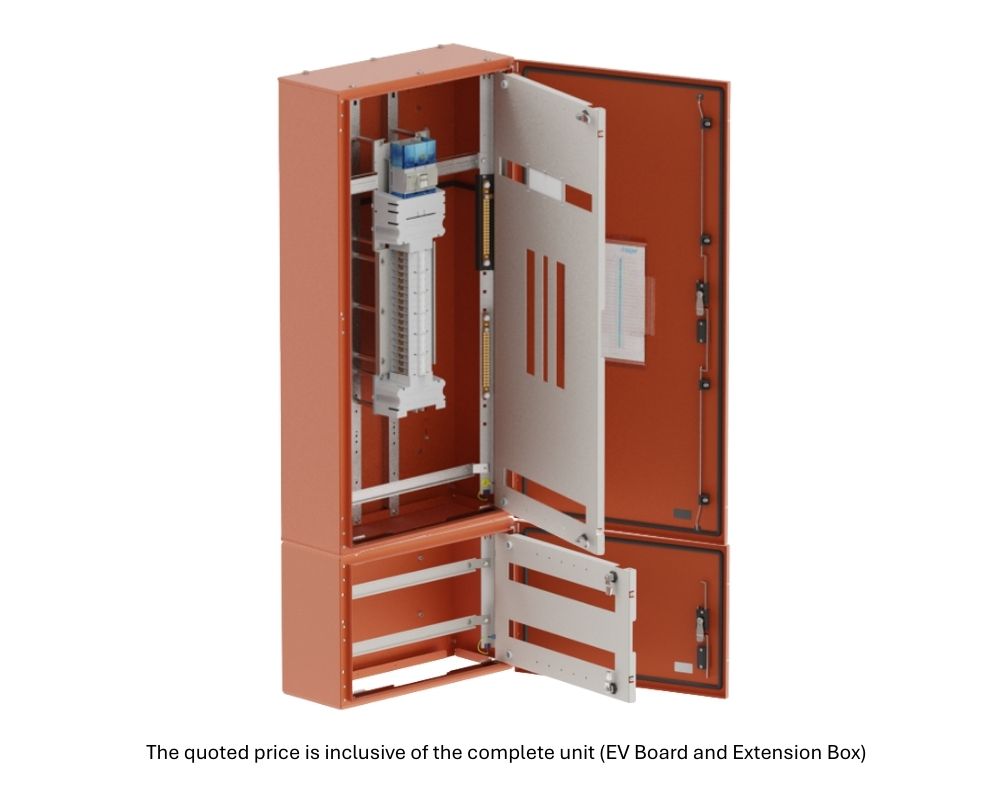

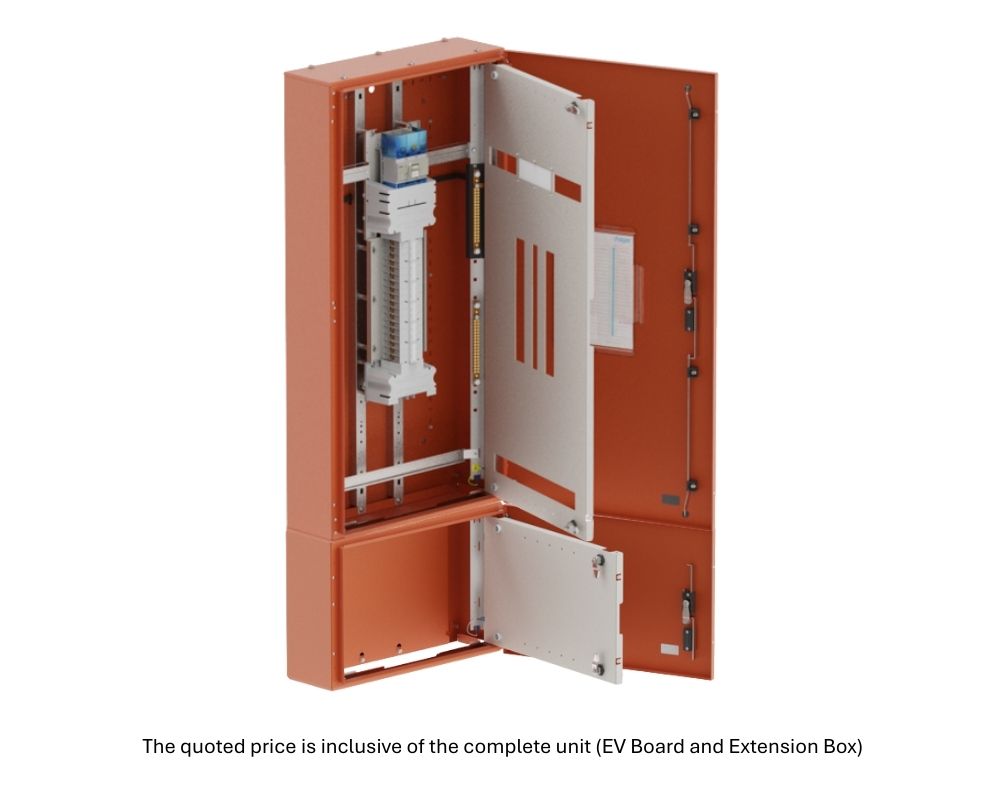

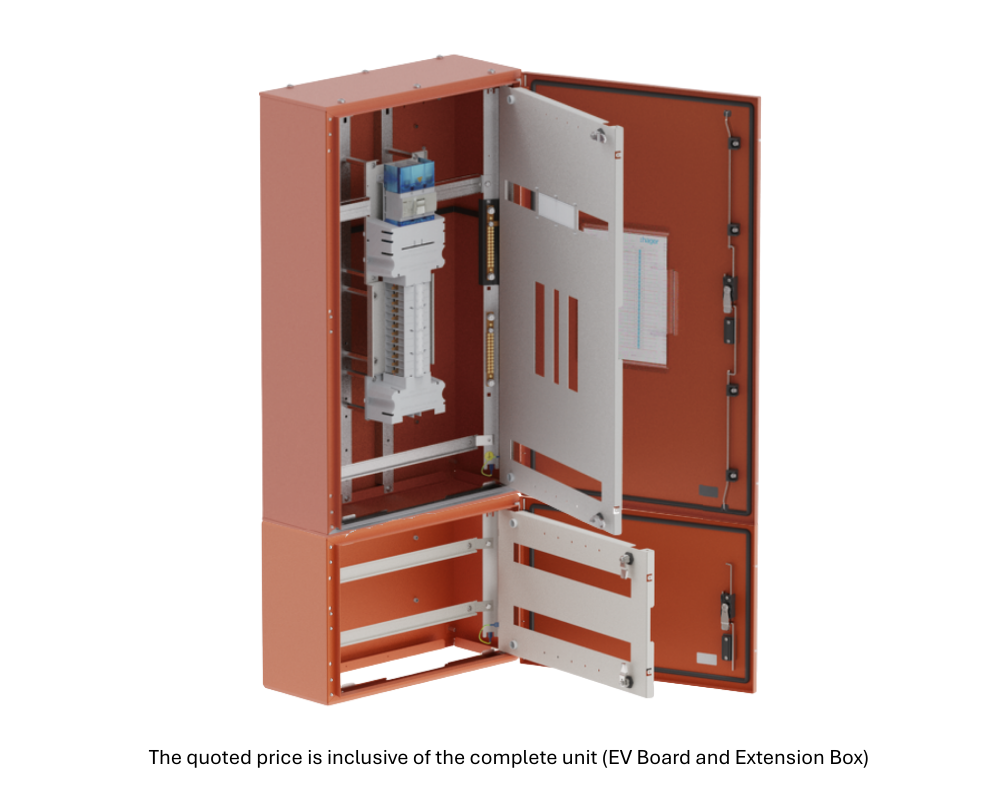

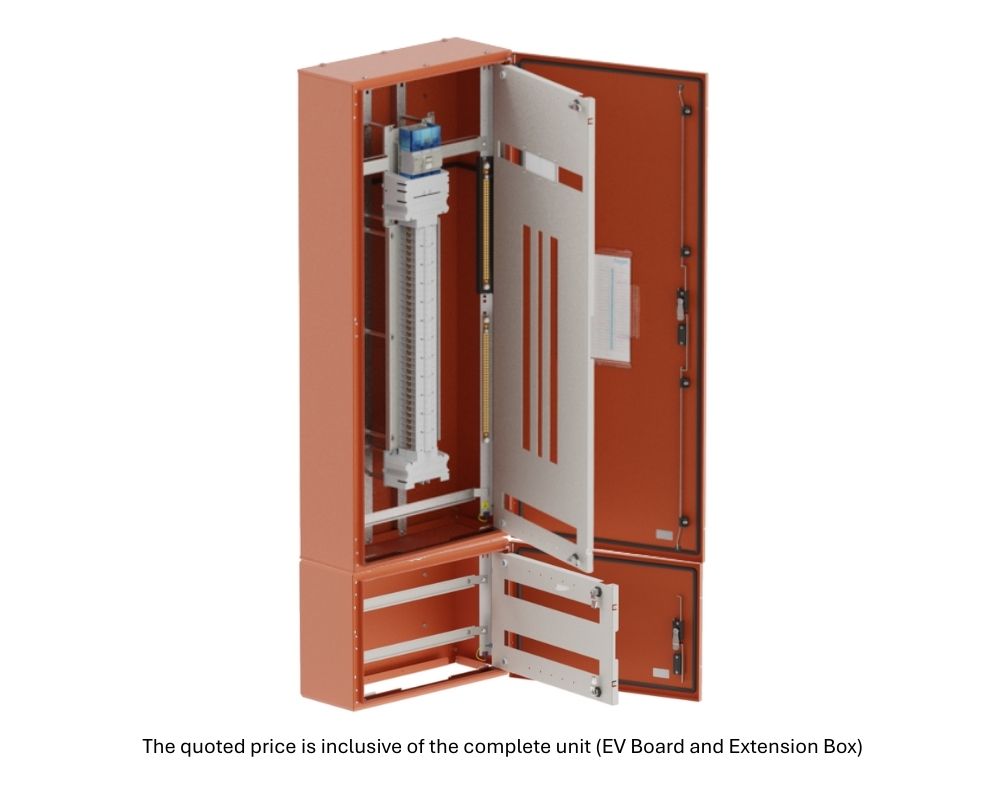

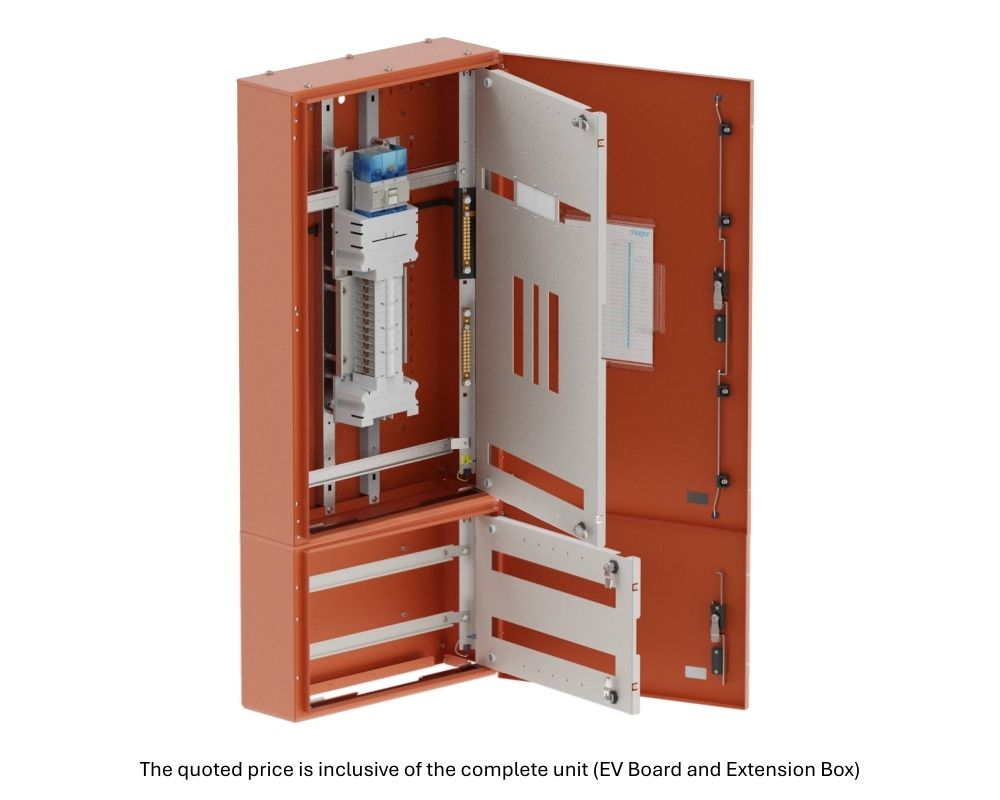

Designed for scalability and ease of EV charger installation, our distribution boards support multiple EV chargers and integrate seamlessly with load management systems to optimise power usage. Available in a range of configurations including indoor (IP43) and outdoor (IP66) options, Ocular’s solutions are tested, compliant, and ready for today’s EV charging demands and future expansion.
Key Benefits:
Start your EV charging infrastructure project with Ocular’s reliable and compliant EV distribution boards.
We empower your transition to electric mobility with our complete electric vehicle charging solutions.
